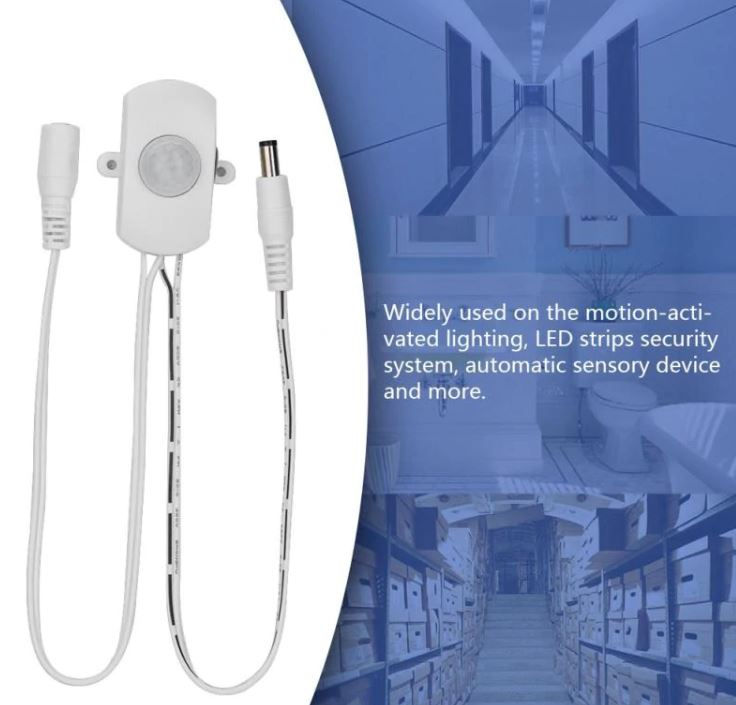

DC 5-24V 5A MINI ADJUSTABLE PIR INFRARED MOTION SENSOR

DETECTOR FOR LED LIGHTING 5.5 DC PLUG

Description:

This switch with PIR Infrared Motion sensor detector, can be used in corridors, bathrooms, basements, warehouses, garages and other places to achieve electrical automatic control functions. High and stable sensitivity effectively save energy and money for you.

Features:

PIR motion sensor can detect human movement by detecting infrared ray emitted by human body.

120 degrees cone angle detecting range and detecting distance is up to 3-5m. High and stable sensitivity, effectively save energy and improve efficiency.

Widely used on the motion-activated lighting, LED strips security system, automatic sensory device and more.

2-360 seconds adjustable delay range for you to choose a suitable time.

Output voltage is equal to input voltage, low power consumption.

PIR INLINE MOTION SENSOR STRIP LIGHT BAR

AU$18.95Price
  • Operating voltage: 5V-24VDC (wide voltage)Working temperature: -20 °C ~ +38 °CQuiescent current: < 50uAOutput current: 5ATrigger mode: Continuous triggerOutput Mode: Inductive OutputDelay range: Default setting 15S (10-360 seconds adjustable)Induction mode: passiveSensing angle: 120-degree cone angleSensing distance: 5-7mSize: 50*40*22.5mm
